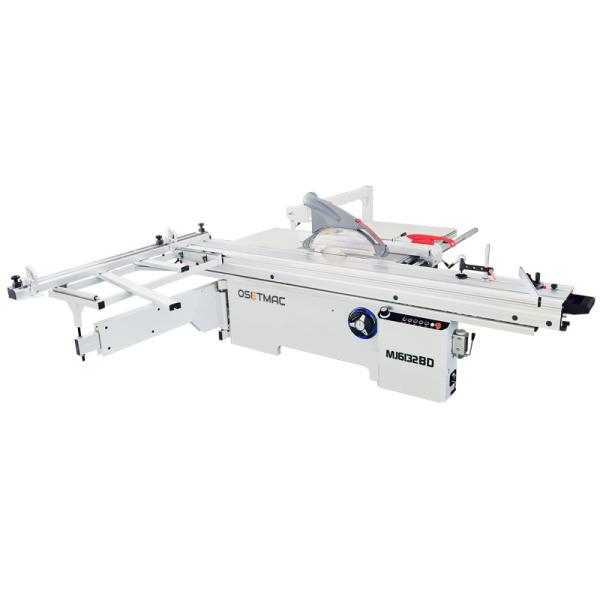

accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting

Name: accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
Brand: OSETMAC
Price: 3 USD

China accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting factory

Condition : New

Type : Panel Saw

Use : Woodworking, cut wood

Style : Horizontal

Place of Origin : Shandong, China

Brand Name : OSETMAC

Voltage : 380V/220V/415V

Dimension(L*W*H) : 3250*3450*900mm

Warranty : 1 Year

Application : Furniture factory

Weight (KG) : 800 KG

Power (kW) : 6.6KW

Key Selling Points : High-accuracy

Max.Cutting Height at 90°(mm) : 100 mm

Max.Cutting Height at 45°(mm) : 70 mm

Max. Length of Workpiece (mm) : 3100 mm

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works

Marketing Type : Hot Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Name : Precision Panel Saw

Blade size : 300-350mm

After-sales Service Provided : Video technical support

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : Viet Nam, Brazil, Pakistan, Russia, Malaysia, Uzbekistan

Showroom Location : None

Certification : CE ISO SGS

Packaging Details : WOODEN CASE PACKING OR STRETCH FILM

Port : Qingdao

Supply Ability : 5000 Set/Sets per Year

Price : $3,680.00/sets 1-9 sets

Contact Now

Sliding Table Saw MJ6132 BD for Wood Cutting

accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting

A	Main Table	Main working table
B	Extension Table	Extension working table
C	Dust Guard	Not only reduce dust produced by chips while cutting， but also warning the operator where the saw-blade position.
D	Rip Fence	Reference positioning while ripping
E	Hand Swage	To press the workpiece on the sliding table
F	Miter Fence	Reference positioning while 0-45° cutting
G	Sliding Table	Table for main feeding while cutting
H	Oiler	To oil for the inner structure
I	Controlling Panel	Control the machines running，indication， stop，lifting etc.
J	Hand Wheel for Mail Saw Tilting	To adjust main saw tilting 0-45°
K	Cross Cut Table	Used to put the workpiece while cross cutting
L	Cross Cut Fence	To position the size of the movable positioning board
M	Movable Position Stops	To position while cross cutting

Inner Structure

This machine uses linear guideway to lift the
saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

Sliding Table Structure and Feature

Our sliding table supplier is the same as SCM.Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock
on the table makes it convenient to stop anywhere.

Product Paramenters

Sliding Table Dimension	3200*390mm
Cast Iron Table Dimension	91062080mm
length extension table	90568070mm
width cutting extension table	64068070mm
Main Saw Diameter	300mm
Main Saw Blade Diameter Maximum	350mm
Main Saw Bore Diameter	30mm
Max. Cutting Height With Bade at 90	80/100mm（φ300/350）
Max. Cutting Height With Bade at 45	50/70mm（φ300/350）
Main Motor Power	5.5KW
Main Blade Speed	4000/6000RPM
Scorning Saw Blade Diameter	120mm
Scorning Saw Bore Diameter	20mm
Scorning Saw Motor Power	1.1KW
Scorning Blade Speed	8000RPM
Max. Cutting Width	1250mm
Max. Cutting Length	3100mm
Blade Tilting Adjustment	0-45°
Main Saw Height Adjustment	Electric
Scorning Saw Height Adjustment	Electric
Dust Guard Outlet Diameter	80mm
Dust System Outlet Diameter	100mm
Dimension of Wood Packing Carton	225012001100mm(Main Crate )
		3400450290mm(Sliding Table)
Dimension	32503450900mm
G. W.	800KG

Packing&Shipping

Detailed Images

All bearings in our sliding table saw are imported SKF brand.

We use thicken Cast-iron Main Table and Broaden Extension Table on this sliding table saw.

Big dust cover is optional in this sliding table saw. This device can make sure better dust collection effect and keep safety.

The main saw blade lifting is electric control which makes it easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

Company Introduction

OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
